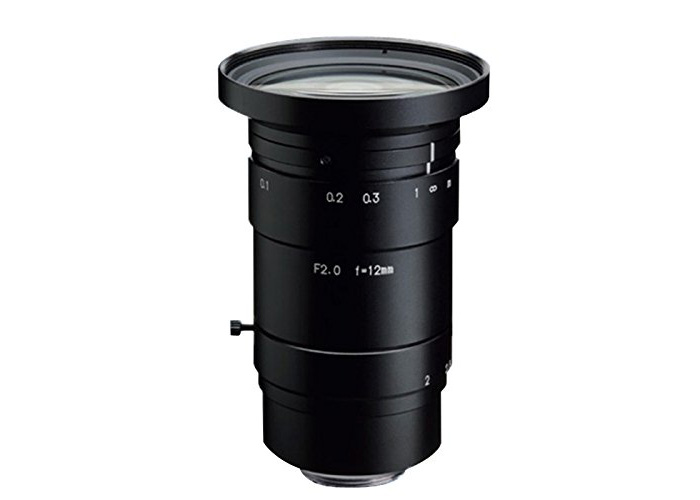

| Model | LM12XC | |
| Focal length(mm) | 12 | |
| Image size(mm) | 4/3"(Φ23) | |
| Iris range(F-stop) | F2.0?F22 | |
| Focusing range(m) | 0.1?∞ | |
| Control | Iris | Manual |
| Focus | Manual | |
| Shooting range at M.O.D. | 182(H)×136(V) | |
| Angle ofview(degree) | 4/3 inch | 74.9×59.6 |
| 1 inch | 55.9×43.1 | |
| 2/3 inch | 39.8×30.2 | |
| Resolution(Center, Corner) | 160lp/mm,80lp/mm | |
| Distortion(TV) | 0.59% | |
| Back focus in air(mm) | 13.0 | |
| Mount | C-mount | |
| Filter thread(mm) | M55×P0.75 | |

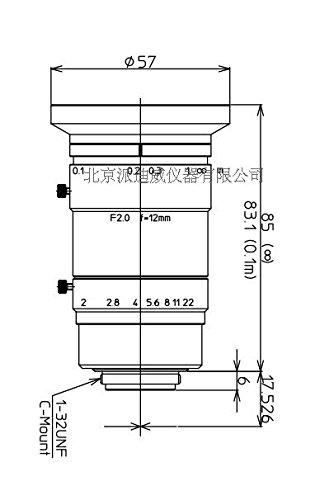

| Size(mm) | Φ57×85 | |
| Weight(g) | 270 | |
| Temperature range | -10℃?+50℃ | |
