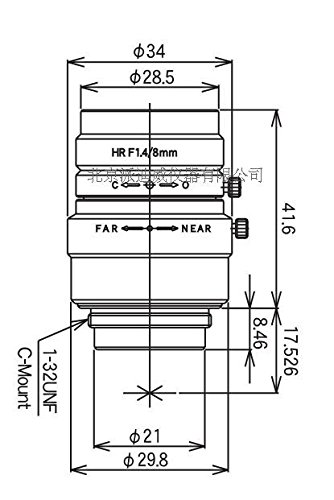

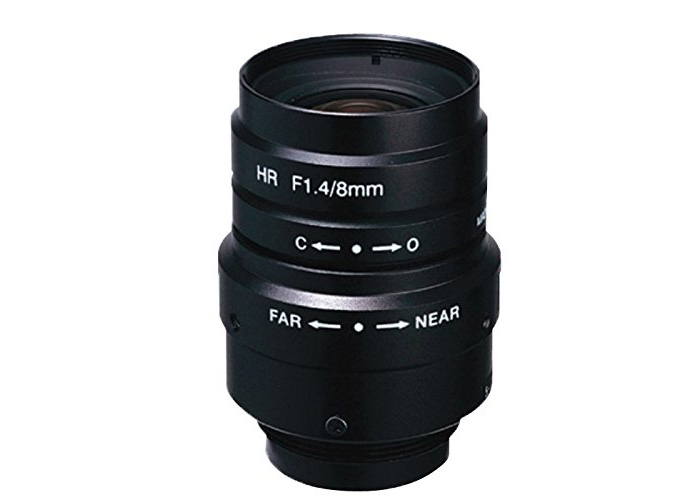

| Model | LM8JCM | |
| Focal length(mm) | 8 | |
| Image size(mm) | 2/3"(Φ11) | |
| Iris range(F-stop) | F1.4?Close | |
| Focusing range(m) | 0.12?∞ | |
| Control | Iris | Manual |
| Focus | Manual | |
| Shooting range at M.O.D. | 117.3(H)×88(V) | |
| Angle ofview(degree) | 2/3 inch | 56.5×43.9 |
| 1/2 inch | 42.6×32.5 | |
| 1/3 inch | 32.5×24.6 | |
| Resolution(Center, Corner) | 120lp/mm,100lp/mm | |
| Distortion(TV) | ?0.6% | |
| Back focus in air(mm) | 9.5 | |
| Mount | C-mount | |
| Filter thread(mm) | M27×P0.5 | |
| Size(mm) | Φ34×41.6 | |
| Weight(g) | 83 | |
| Temperature range | ?10℃?+45℃ | |
Specifications are subject to change without notice.
